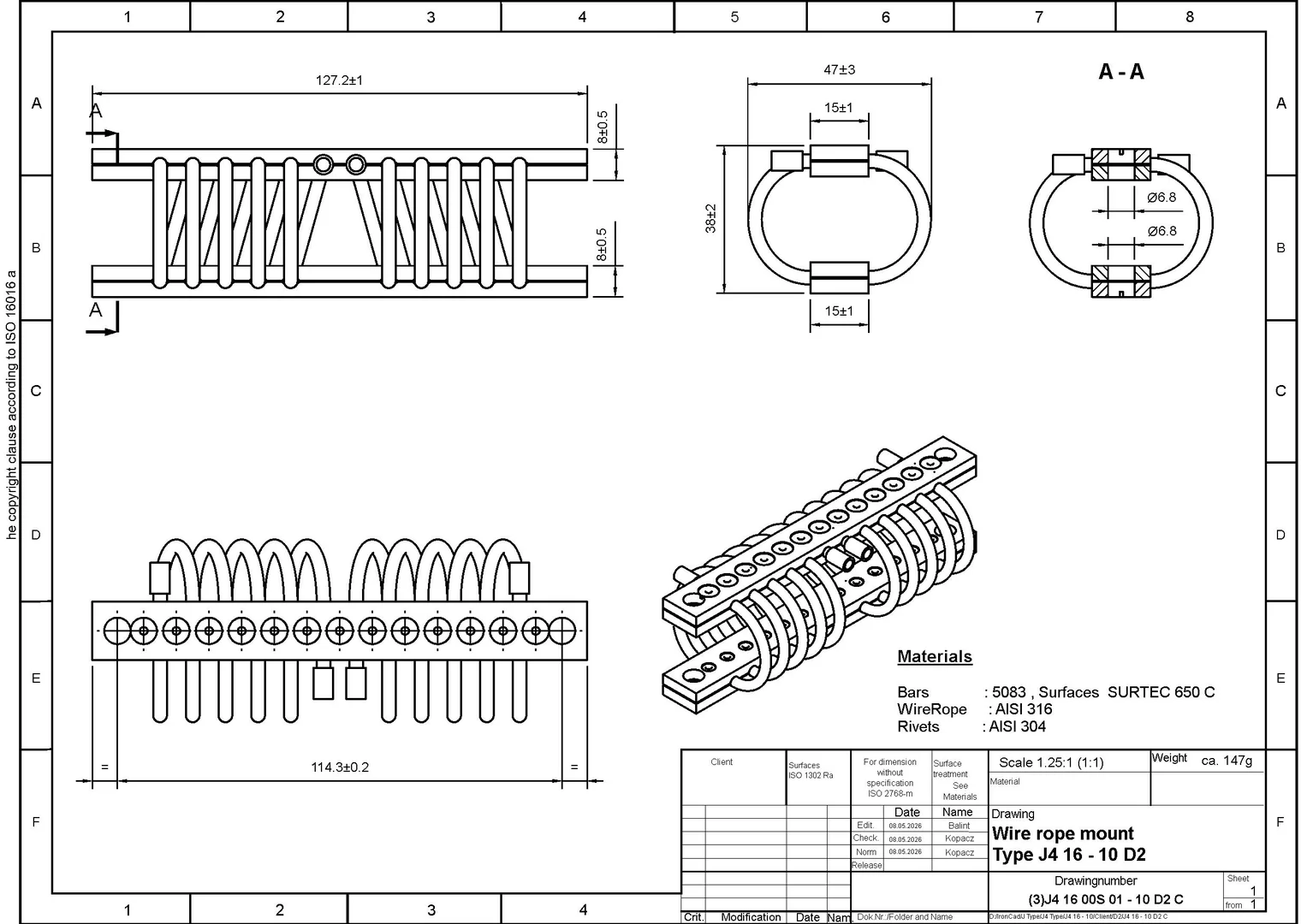

J4 16-10
J4 16 - 10
Product description
The J Series is range of compact wire-rope mounts and isolators designed for applications requiring reliable vibration isolation and shock damping within a limited installation space.
The J Series consists of durable and highly reliable wire-rope mounts with small dimensions and excellent isolation and damping properties. The wire-rope construction provides effective vibration isolation in combination with inherent energy dissipation. The mounts are suitable for applications exposed to vibration, shock and demanding environmental conditions.
The J Series covers a load range from approximately 2 kg to 225 kg per mount, depending on the model.
The J Series is particularly suitable where compact dimensions, vibration isolation and damping are required. Typical applications include aviation and aerospace, industrial and plant engineering, switch cabinets, device holders and special applications with limited available space.
The standard versions can also be supplied, on request, with non-magnetic configurations, special fastening options and modified numbers of wire-rope windings.
Product information
The J Series is based on a riveted construction. Special fastening options can also be supplied on request, depending on the application.
Type of fixing:
- D2 – through-hole in both retaining bars
- S2 – countersunk hole in both retaining bars
- G2 – metric thread in both retaining bars
- DS – retaining bar 2 with through-hole; retaining bar 1 with countersunk hole
- DG – retaining bar 2 with through-hole; retaining bar 1 with metric thread
- SG – retaining bar 2 with countersunk hole; retaining bar 1 with metric thread
Material:
The J Series in different material configurations depending on the application requirements. Available material options include:
- Retaining bars made of AlMg4.5Mn with SurTec 650 C surface treatment
- Stainless-steel retaining bars made of 1.4404 (AISI 316L)
- Wire rope made of 1.4401 (AISI 316)
- Galvanized high-strength steel rope for applications without special corrosion-resistance requirements
Special non-magnetic versions are also available.
