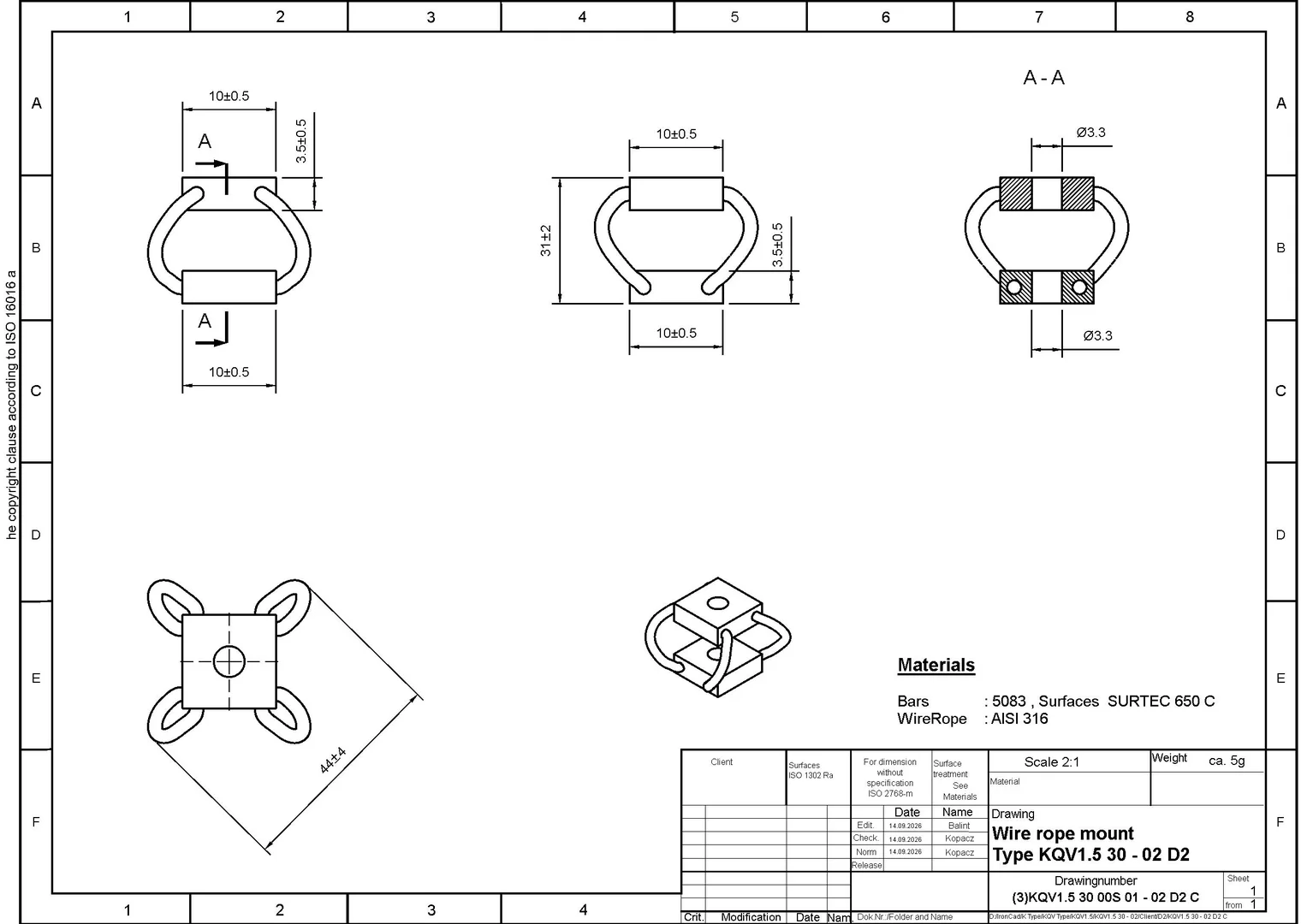

KQV1.5 30-02
KQV1.5 30 - 02
Product description
The Wire Rope Mounts or WRM have been specially developed for optimal isolation of vibrations and shocks. The design of the WRM is relatively simple but very ingenious. Various TNO tests have proven the excellent performance of the Wire Rope Mounts. The Sebert Wire Rope Mounts have important advantages over Elastomer Mounts, Yielding straps and Leaf Spring Mounts.
Product information
Type of fixing:
The KQV Series can be supplied with different fastening configurations according to the application requirements:
- D2 – through hole in both retainer bars
- S2 – countersunk hole in both retainer bars
- G2 – metric thread in both retainer bars
- DS – retainer bar 2 with through hole and retainer bar 1 with countersunk hole
- DG – retainer bar 2 with through hole and retainer bar 1 with metric thread
- SG – retainer bar 2 with countersunk hole and retainer bar 1 with metric thread
Material:
The KQV Series can be manufactured in different material configurations depending on the application requirements.
Standard design:
- Retainer bars: AlMg4.5Mn, surface treated with SurTec 650 C
- Wire rope: 1.4401 (AISI 316)
- Stainless-steel design:
- Retainer bars: 1.4404 (AISI 316L)
- Wire rope: 1.4401 (AISI 316)
Non-magnetic design:
- Retainer bars: AlMg4.5Mn, surface treated with SurTec 650 C, 1.4404 (AISI 316L)
- Wire rope: 1.4401 (AISI 316)
